Molten steel,aluminum,iron,copper furnace

Intermediate frequency furnace
Ω频率范围大,1KHZ-20KHZ,可根据具体加热工件的直径,选择合适的频率。
With wide range from 1KHZ to 20KHZ, the users can choose the suitable frequency according to the specific diameter of heating workpiece.

Ω中频锻造炉整料加热时,感应圈长度为500MM-1M长,同时有多根料在加热,更加保证了透热的效果。
The length of induction coil is 500mm-1m when the medium frequency forging heating furnace is heating. At the same time many rods are heating to ensure the diathermal effect.

Ω中频锻造炉采用连续加热方式,感应圈内部的负载比较均衡,克服了整个加热过程中,单根棒料负载从室温升至1100℃时,负载巨大的变化而引起的设备实际加热功率的巨大变化,使整个连续加热过程中,设备的实际功率都可以保证在额定功率值的85%以上,设备得以有效利用。
Medium frequency forging heating furnace employs the way of continuous heating to balance the internal load of induction coil and avoid the actual heating power fluctuations caused by the change of load when the temperature of single rod load rises to 1100℃ in the heating process. The actual power of equipment can be at least 85% of rated power to make sure the equipment operates efficiently.

Ω加热铜和铝等有色金属时,通过合理设计感应圈和电容,设备的实际功率也可以发挥到最大功率的85%以上,加热铜可达到3.5KG/KW小时的加热能力。
With the reasonable design of induction coil and capacitor, the actual power can also be at least 85% of rated power when non-ferrous metals such as copper and aluminum are heated. The heating capacity can reach 3.5KG/KW per hour when copper is heated.

Ω比起可控硅中频电源,不仅体积小,维护方便,更可省电15-20%。
Compared to SCR medium frequency power supply, it is featured with small volume, ease of maintenance and power saving about 15-20%.

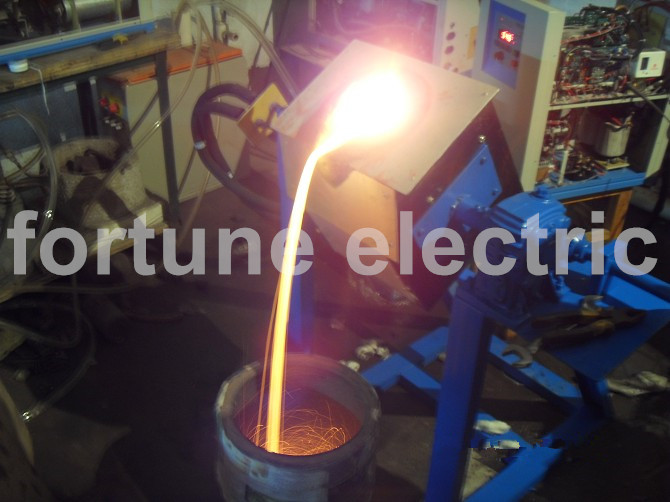

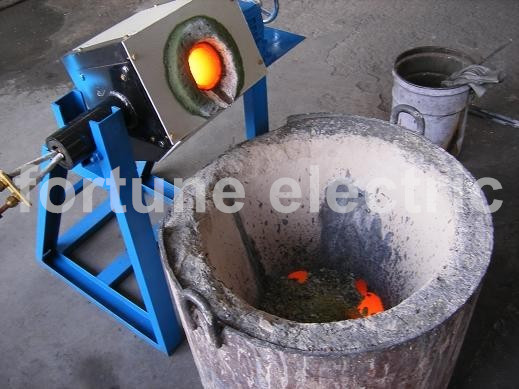

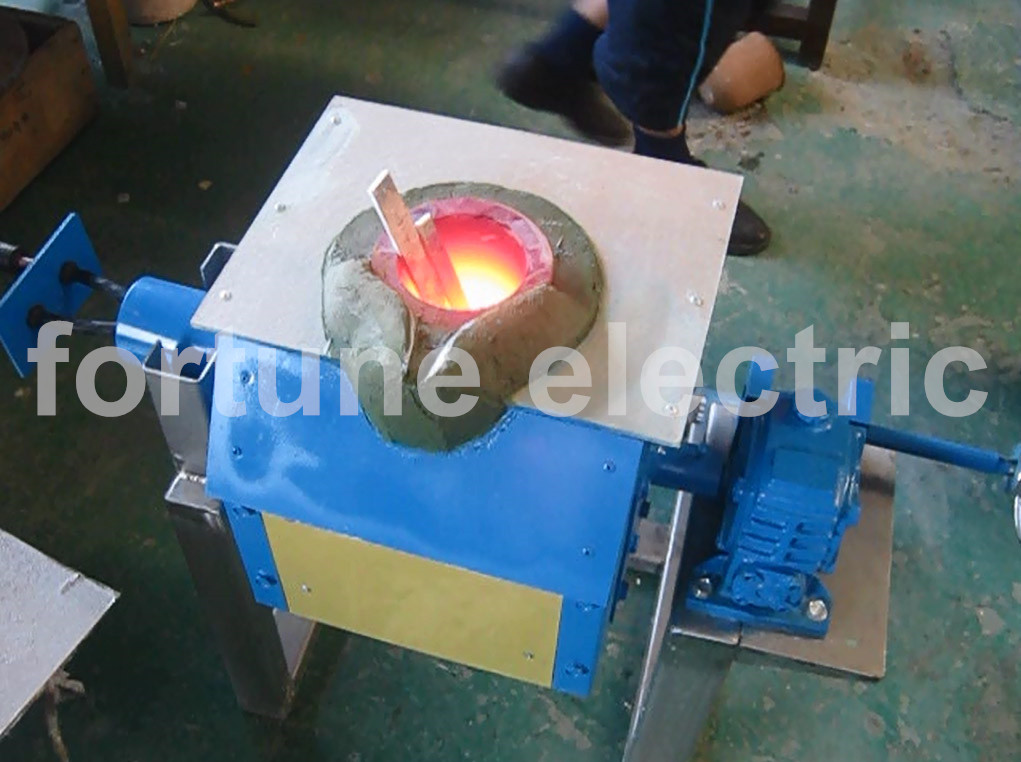

Ω中频熔炼炉用于钢、不锈钢、铜、金、银等材料的熔炼。
Medium frequency smelting furnace is used for melting steel, stainless steel, copper, gold, silver and other materials.

Ω中频熔炼炉有很好的电磁搅拌作用,有利于熔炼金属温度及组织的均匀,有利于浮渣,减少杂质。
Medium frequency smelting furnace is equipment with electromagnetic stirrer, which is helpful for the uniformity of melting metal temperature and organization, also helpful for scumming and reducing impurities.

Ω频率范围宽,从1KHZ-20KHZ,可综合考虑熔炼量,电磁搅拌作用,加热效率,工作时的噪音等因素设计感应圈及匹配补偿电容,决定输出频率的大小。
Medium frequency smelting furnace is with wide frequency range from 1KHZ to 20KHZ. Taking smelting capacity, electromagnetic stirring force, heating efficiency and working noise into consideration, we have designed induction coil and matching compensation capacitor which decide the size of output frequency.

Ω比可控硅中频,节能至少20%以上。
Compared to SCR medium frequency furnace, the medium frequency smelting furnace can save energy at least20%.

Ω设备体积小,重量轻,熔炼量从几公斤到几百公斤,可选择范围很大,即适合工厂生产使用,也适合学校和研究所小量熔炼使用。
It is not only appropriate for factories but also for schools and research institutions with the advantage of small size, light weight, smelting capacity from a few kilograms to hundreds of kilograms and wide optional range.
